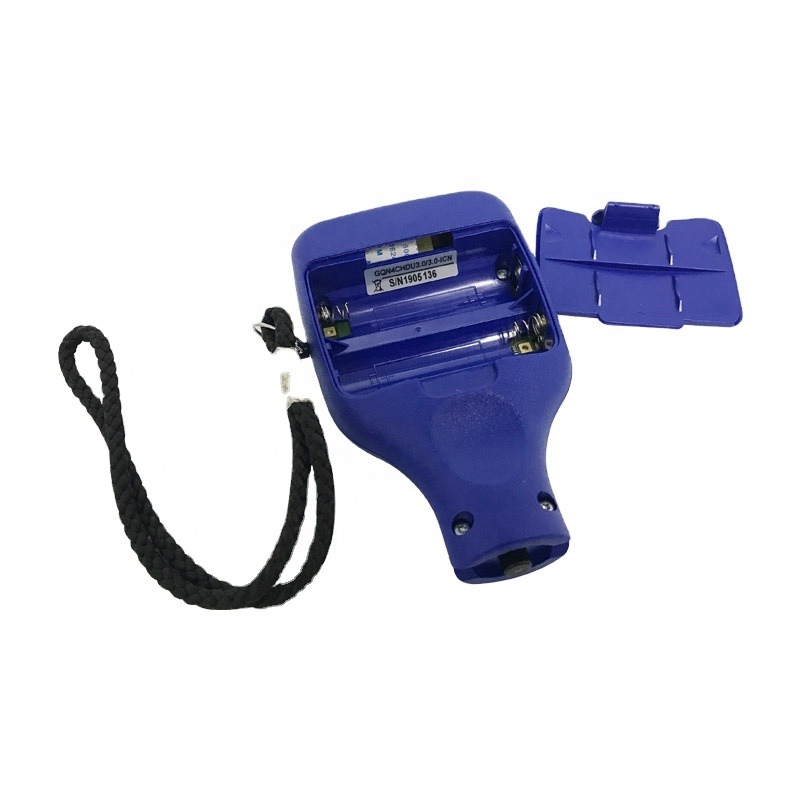

Germany QuaNix 4500 Qnix 4500 thickness gauge

Germany thickness gauge QuaNix 4500

(Menu is Chinese Language)

Description:

With the QNix® 4500, precise measurements on steel, iron and non-ferrous metals are simply perfect. Switch between the measuring procedures by simply pressing the button.

No calibration required. High precision over the entire measuring range: Fe3000μm and NFe 3000μm.

The sensitive QNix® 4500 measuring probe is fully integrated into this extremely small, light and handy gauge-optionally available as Cabel Probe. Its readable LCD informs about readings, battery condition, mode of operation and serial number.

Product Advantages:

1. Gauge for standard applications-easy,safe and fast measurements.

2. One-hand operation. Only one button.

3. No calibration.

4. Automatic On/Off.

5. High precision over the entire measuring range: Fe 0-5000μm and NFe 0-3000μm.

6. Broad spectrum of use for non-destructive measurements on steel, iron and non-ferrous metals such as aluminum, zinc, copper and brass.

7. Proven technology: Hall sensor and Eddy Current technology.

8. Acoustic signal confirms taking of a measurement.

9. Wear-proof ruby probe tip for long-term use.

Optimal LCD-Display:

1. Large clear numbers for optimum readability.

2. Precise display of readings, battery condition, mode of operation and serial number.

3. Backlit display.

Technical Data:

(1) * of the measurement

(2) Fe* : Measuring of non-ferromagnetic coatings on ferromagnetic substrate, for example measuring on steel- or iron-substrates.

(3) NFe* : Measuring of non-ferromagnetic and electrically non-conductive coatings (insulating coatings) on non-ferromagnetic and electrically conductive

substrate, for example measuring on aluminum-, zinc-, brass- and certain stainless ( high-grade ) steel-substrates.
