Aperçu /Produits/Testeur d'épaisseur de peinture/EC-600X Zero Calibration Paint Thickness Meter With Low Temperature Resistant Battery

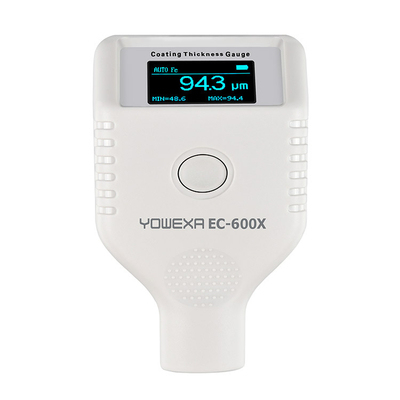

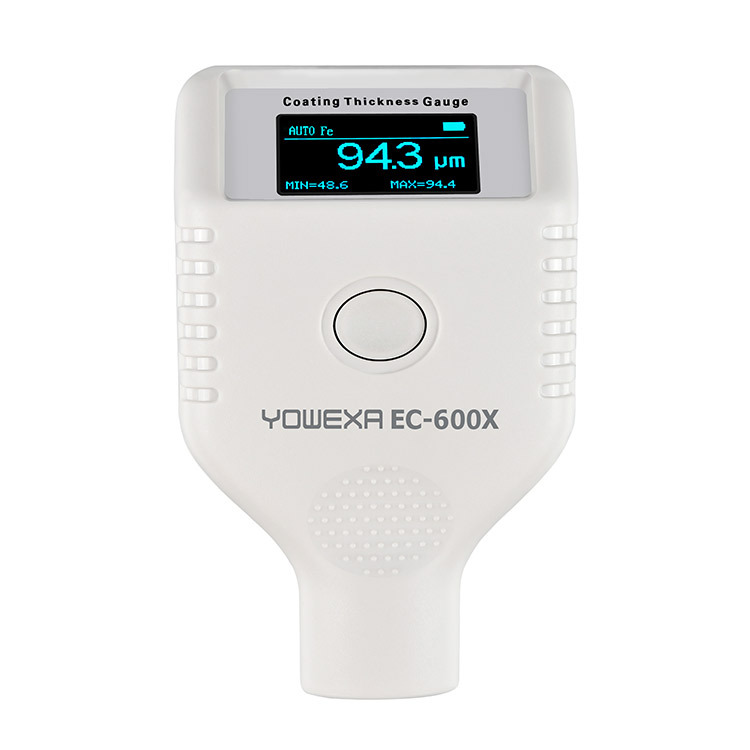

EC-600X Zero Calibration Paint Thickness Meter With Low Temperature Resistant Battery

EC-600X Zero Calibration Paint Thickness Meter With Low Temperature Resistant Battery
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Informations de base
Conditions de paiement et expédition
Description de produit

EC-600X Low Temperature Resistant Paint Thickness Gauge

Specifications

Model EC-600 EC-600S EC-600SE EC-600X
Probe position Internal External Internal
Measuring principle Fe: Magnetic induction principle; NFe: Eddy currents principle
Measuring range 0~2000μm
Accuracy ±(3%+1μm) ±(2%+1μm) ±(2.5%+2μm)
Resolution 0.1μm(0~100μm); 1μm(>100μm)
Unit μm, mm, mil
Calibration Zero calibration
Probe Triggering force 0.5~1.2N
Minimum radius of curvature of substrate Convex 5mm
Concave 25mm
Minimum measurement area Diameter 15mm
Minimum substrate thickness Fe: 0.30mm Fe: 0.20mm Fe: 0.30mm
NFe: 0.05mm NFe: 0.03mm NFe: 0.05mm
Response time About 0.3 seconds (upgrade)
Display Dot matrix LCD screen Dot matrix OLED screen
Bluetooth & APP N Y N
Operating environment -10~+50℃ -40~+50℃
Storage environment -20~+60℃ -50~+60℃
Power supply Two 1.5 V AAA Alkaline battery; Two 1.2V AAA rechargeable battery
Protection class IP40
Dimension 103*62*27mm Main Device: 103*62*27mm 103*62*27mm
Cable: Φ3.5*1000mm
Probe: Φ17*67mm
Material ABS Main Device: ABS ABS
Probe: Stainless Steel
Weight About 57g About 112g About 62g
(not including battery) (not including battery) (not including battery)
Standard CE,ROHS,ISO 2178,2360,GB/T 4956-2003,4957-2003,JJG-818-2005

Product Description

EC-600X uses an OLED display. Under the condition of using low temperature resistant battery, the extreme working temperature of EC-600X can reach -50ºC.

Mainly used for non-destructive thickness measurement for the coatings of paint or galvanized layers on iron and stainless steel, paint or plastic film on aluminum and copper, etc.

FEATURES:
Ruby probe
Display the maximum, minimum,average and numbers of readings
Display interface can check back 10 measurement values
Single button operation
Dot matrix display
Automatic shut-down
Battery protection

APPLICATION:
Car paint thickness detection
Shipbuilding
Electroplating
Metal anti-rust treatment
Film thickness detection
Hardware parts processing

Product Display
